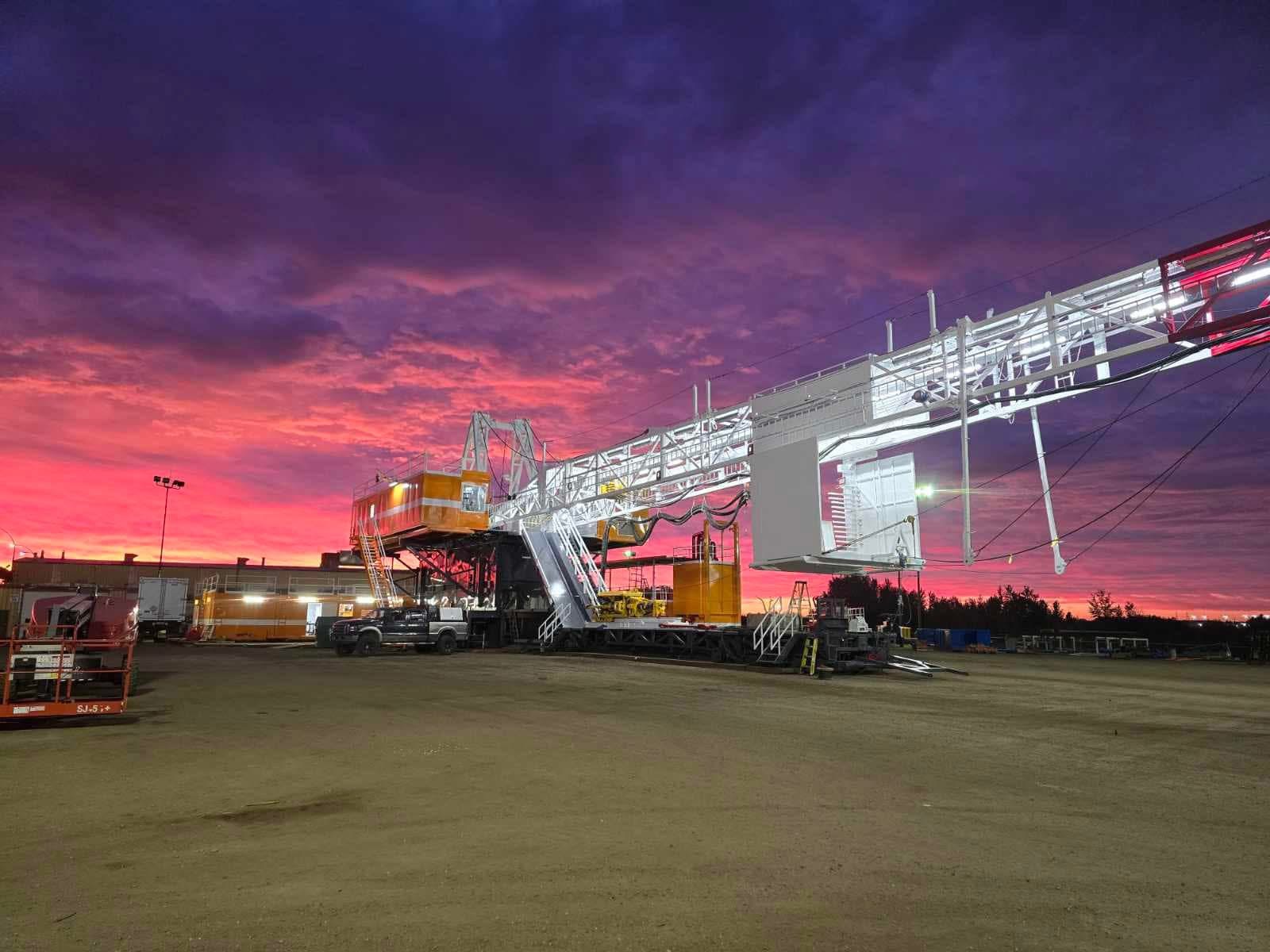

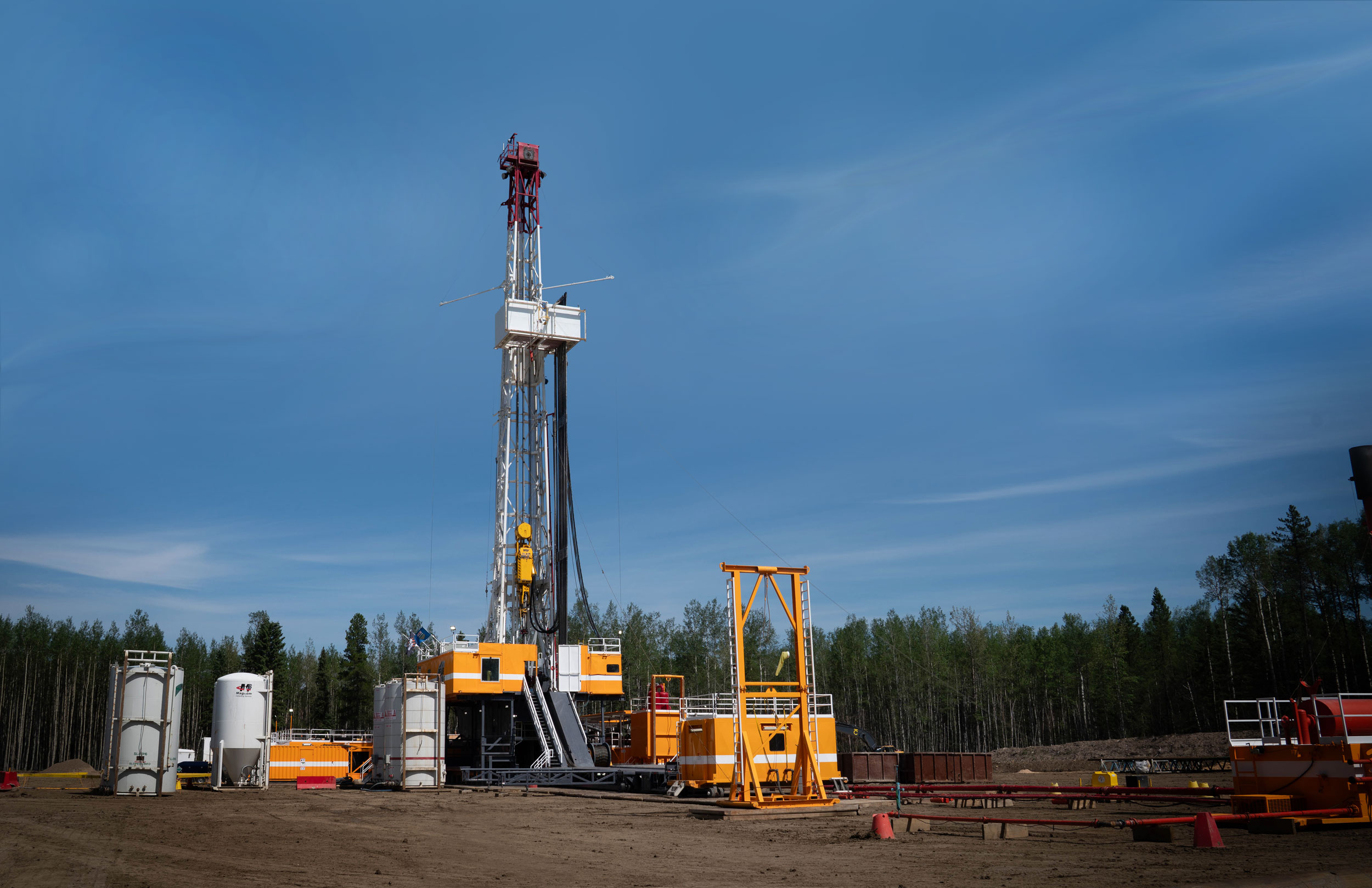

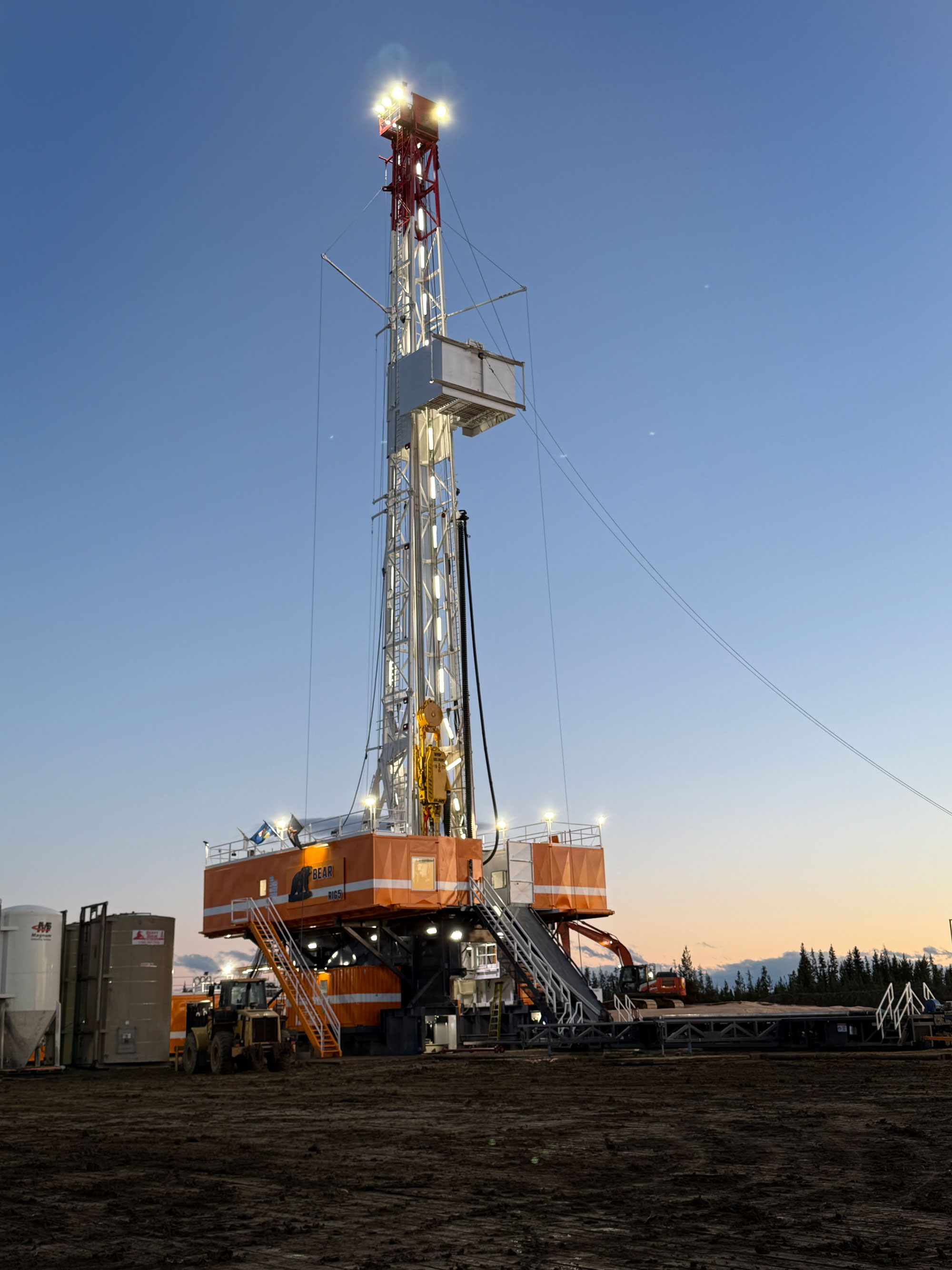

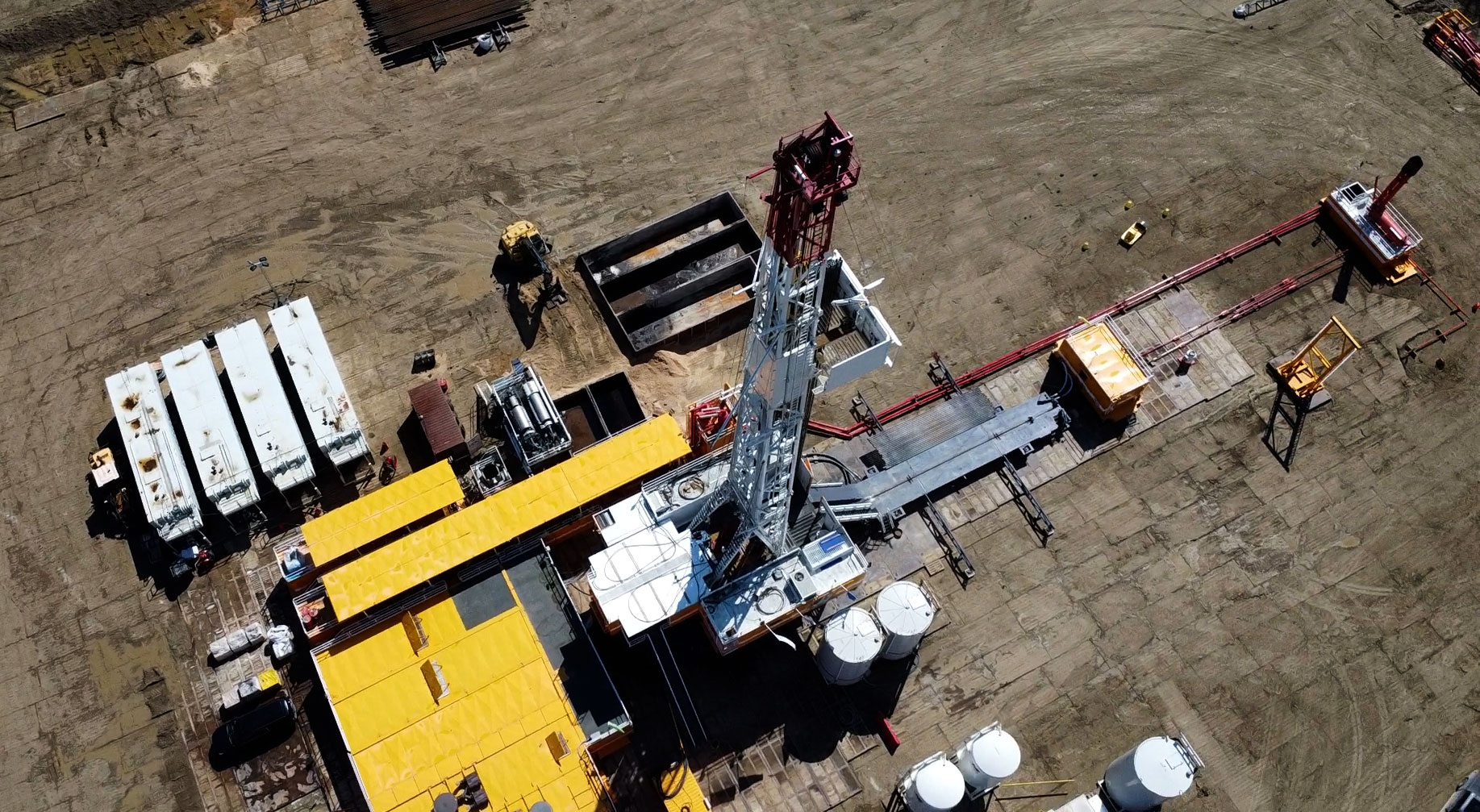

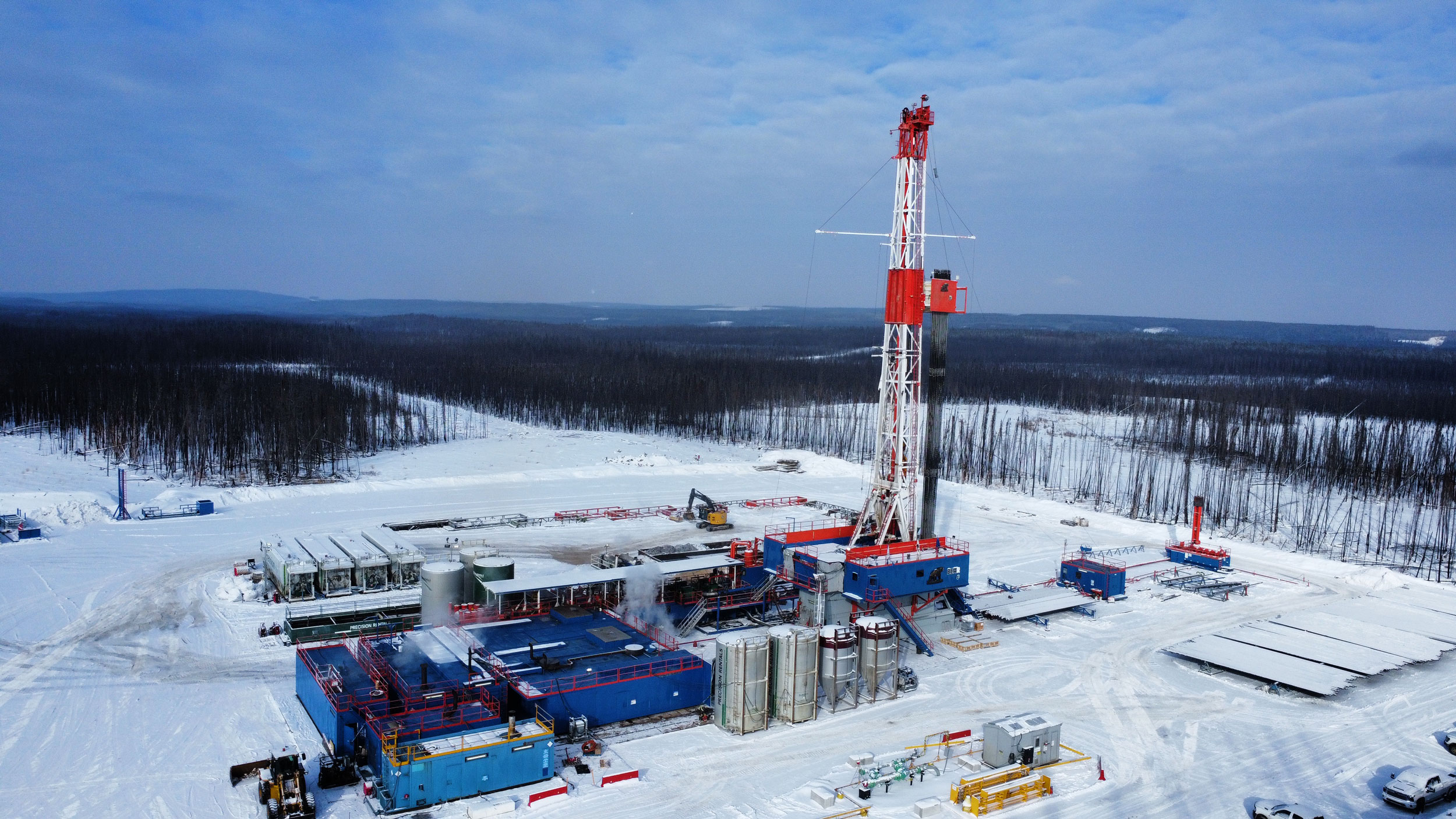

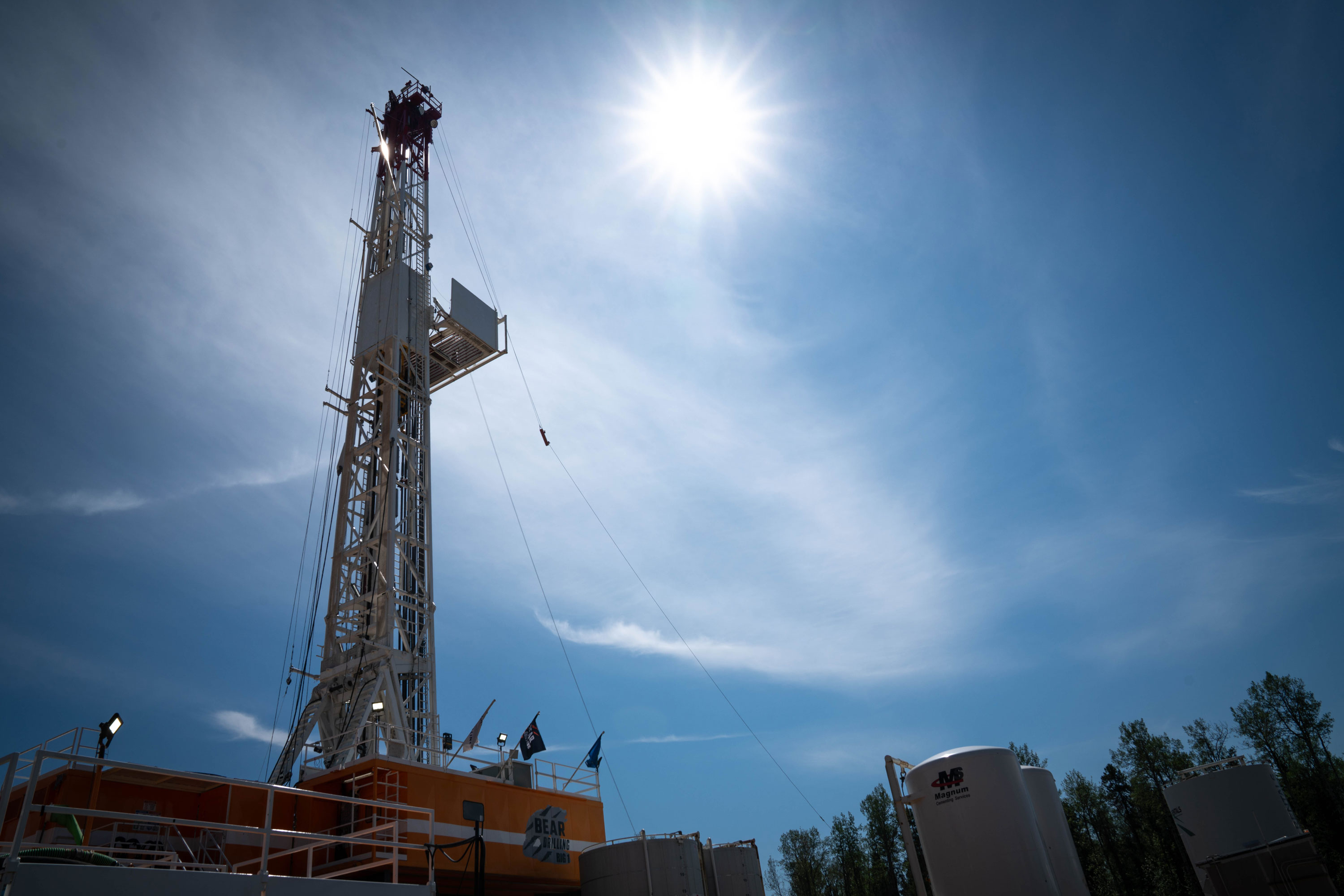

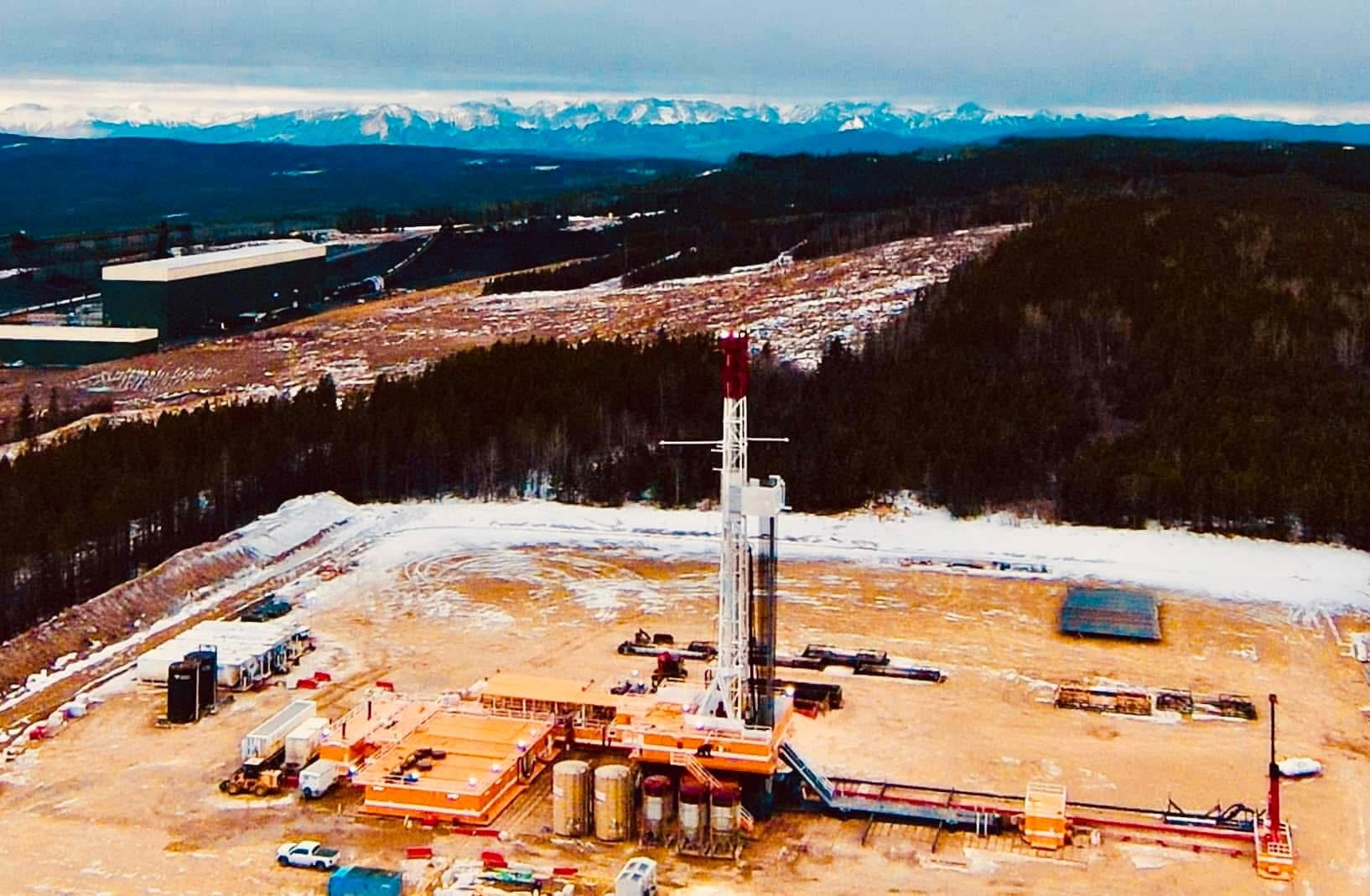

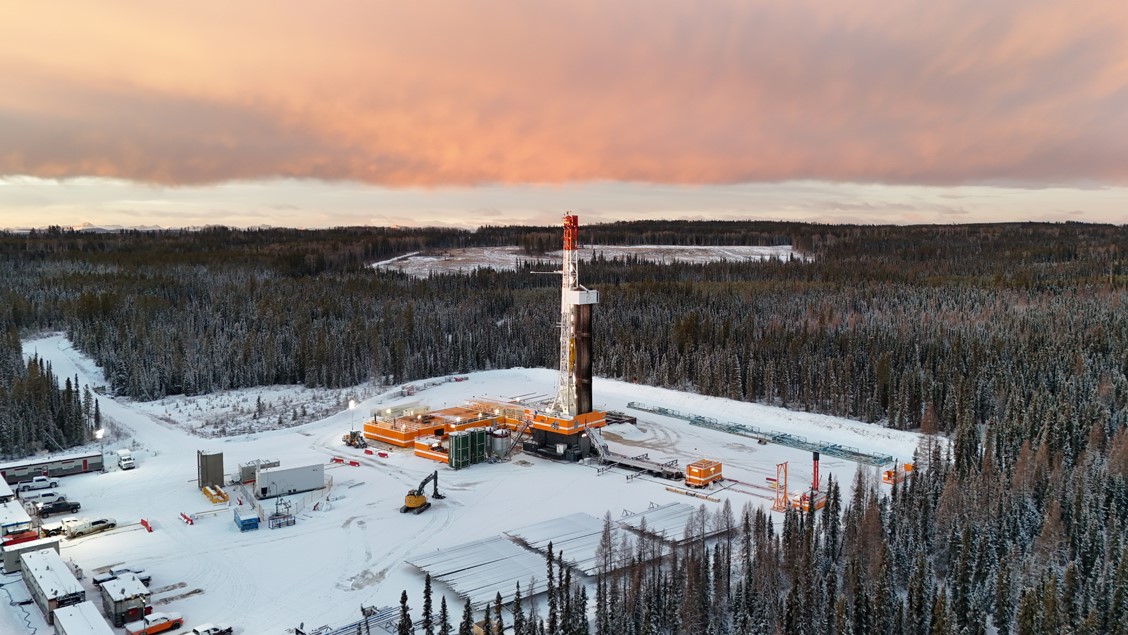

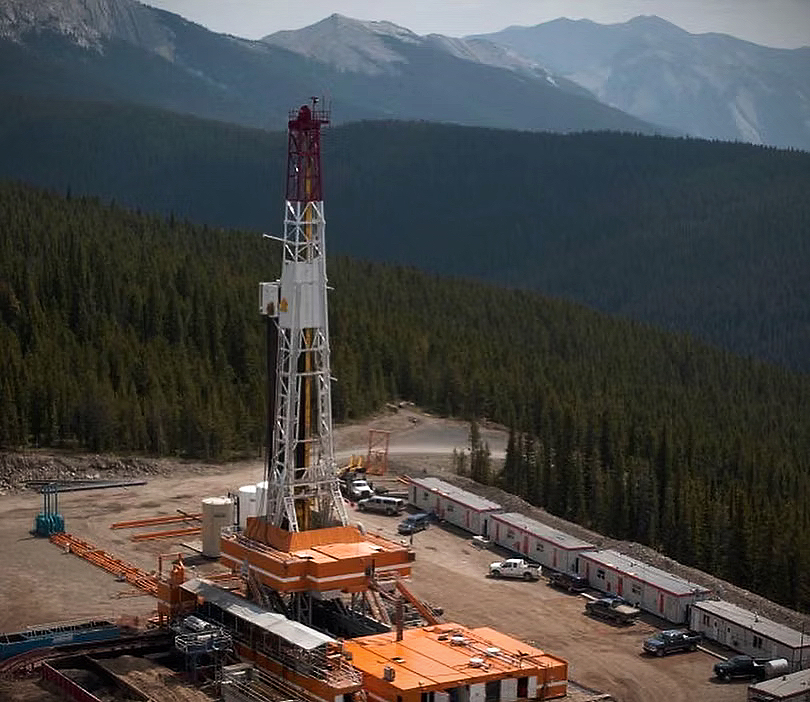

Tall drilling rig against a bright sunny sky

01 / 11

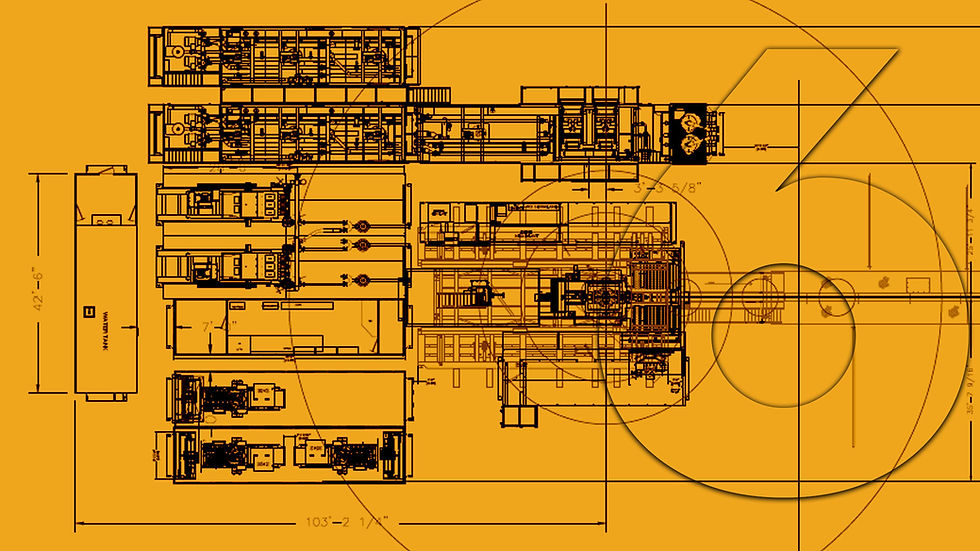

Technical blueprint of industrial fleet machinery

RIG SPECS

DRAWWORKS

TSM 1400; 1043 kW (1400 hp) using 31.75 mm (1 1/4") drilling line c/w Orttech brake Model 0128-100-96-252200
Two - tugger winches two- boom winch
Powered by Joliet HTM1600-J3B, 1193 kW (1600 hp)

MAST

Hodgson M133-13.6-500 Cantilever triple; 266,890 daN (600,000#) w/ 10 lines

SUBSTRUCTURE

Hodgson S14-14.2-300C One piece sub with integral BOP handling, x 15ʼ6ˮ height 18ʼ 5ˮ Rotary clearance on walking boxes,
Rotary capacity 266,890 daN (600,000#), Setback capacity 244,653 daN (550,000#)

MUD PUMPS

2 Gardner Denver PZ-11s; 1193 kW (1600hp) 178 mm x 279 mm. 7500psi (51 MPA) c/w pulsation dampener, Rupture pin relief valve Each powered by motors 1193 kW (1600 hp)

MUD SYSTEM

Three tanks: Total Capacity 238 m3, all covered by a metal roof. Trip tank capacity 5.50 m3; pill tank c/w one 5 hp agitator Three - 7.5 hp agitators
Five 5 x 6 Mission Magnum mixing pumps powered by 50 hp electric motors
Two 914 mm, NACE Poor Boy degasser c/w 101.4 mm (4ˮ) inlet & 254swedged to 203mm (8ˮ) outlet

BOP EQUIPMENT

One 279 mm Shaffer style Annular; 35,000 kPa WP; NACE Trim (API Spec 16A) One 279 mm Shaffer style LWS pipe rams; 35,000 kPa WP; NACE Trim
279 mm Shaffer style LWS Double Gate, pipe/blind rams; 35,000 kPa WP; NACE Trim Two Drilling spools double gut valving

MANIFOLD

NACE Trim double gut line, 76 mm x 76 mm, 35,000 kPa (3" x 5,000#)

ACCUMULATOR

Drilling Controls 6 station Type 80/ 605 litre (160 gal) c/w 2-25 hp triplex pump and 4 nitrogen bottles

DRILL PIPE

6,500 m of 101.6 mm (4"), 23.35 kg/m (17.5 #/ft), Grade S135, IEU c/w DS40 tool joints

BLOCK

NOV Travelling Blocks; 311,500 daN (350 Ton)

GENERATORS

3 New CAT 3512G c/w 1050 kW Kato Generators 1800RPM 1 Isuzu 60kW diesel cold start

ROTARY TABLE

C275; 698.5 mm (27 1/2"); 445,000 daN (500 Ton)

IRON ROUGHNECK

NOV ST-80 Floor wrench
80,000ft/lbs make up / 100,000 ft/lbs break out.

BOILER

Two only 125 hp Bi-fuel Saskatoon boilers c/w water, fuel and a separate boiler waste tank; one set winterizing

AUX EQUIPMENT

Flare Tank with igniter 1m3 Vacuum unit
Ja-Co hydraulic catwalk with integrated hydraulic pipe racks
10 loads of Matting

WALKING BOXES

Rus/Tec 23-188-012 Walking boxes 4ʼ6ˮ rise height, Rotary capacity 266,890 daN
(600,000#)
Setback capacity 244,653 daN (550,000#) Lift height 12ˮ, Stroke length 10ʼ, Side shift 20ˮ Walking system is X and Y capable.

DOGHOUSE

Integrated Drillers controls
Basic Electronic Drilling Recorder (EDR)

TOP DRIVE

Varco IDS 350 Ton AC Drive (311,500daN)
820kW (1100HP) AC drive 37,000ft/lbs @ 142rpm continuous
Pipe oscillation system integrated

ELECTRICAL BUILDING

ABB 880 drive line up and 600v/ 208V MCC control room

TONGS

AAX 42ˮ levers c/w 2 3/8" to 10 3/4" jaws

DRILL COLLARS

6 only 165 mm x 71.4 mm, 4 1/2 XH tool joint

WATER STORAGE

73.5 m3 water, skidded

AUX TANK

Fuel storage of 3785 liters (1,000 gal)

RIG MANAGER WELL SITE UNIT

One only rig manager wellsite c/w washroom for personnel and a 30-kW generator set, for hotel load only
